Strands "Siberia" Low Rider 30" 4-fonctions FLASH (L766mm) - STRANDS
A commander
Réf.: 03402754

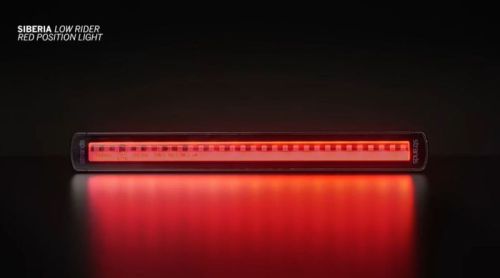

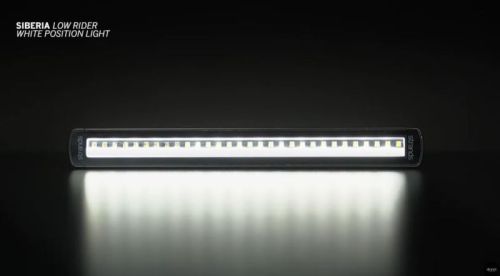

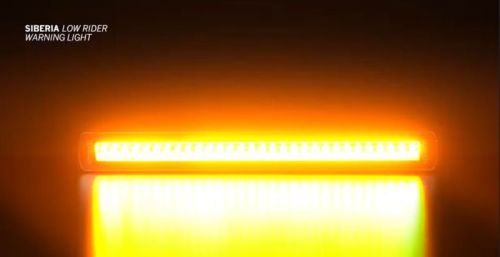

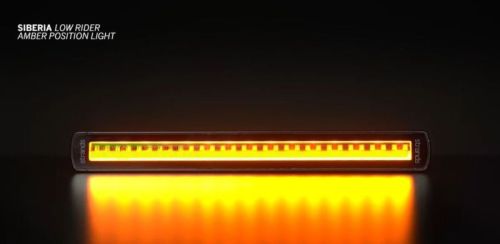

Type of lamp LED Type of LED White:OSRAM Red:ZeMe Amber:Refond PCS LED´s 105 Voltage (V DC) 10-32V DC Theoretical effect (w) 12V White position light: 45W Amber position light: 22.5W Red position light:22.5W Warning light: 45W Theoretical effect (w) 24V White position light: 45W Amber position light: 22.5W Red position light:22.5W Warning light: 45W Consumption specific function (w) 12V White position light: 8W Amber position light: 4.2W Red position light:6.5W Warning light: 16.2W Consumption specific function (w) 24V White position light: 8.7W Amber position light: 4.9W Red position light:7W Warning light: 17.9W Patterns 4 Functions White position light amber position light red position light warning light. IP-class 67/69K Colour housing Black Colour lens Clear Colour LED´s White red amber Position light White red amber Connection Cable Cable length (mm) 2500 Material bracket ADC12 Material housing/chassi Aluminium Material lens Polycarbonate Length (mm) 766 Depth (mm) 50.4 Height (mm) 30.9 Height including bracket (mm) 42.9 Operating temperature -30°C – +65°C ADR-approved No E-approved Yes According to regulation ECE R148 EMC ECE R10
